A3DXYZ DS200
A3DXYZ DS200 3D Printer
Proudly Made in India.
Discover a new 3D Printer of our desktop generation, A engineered to guarantee maximum productivity, robust build mechanism design, low-cost 3d printer. Thanks to features like build volume, 32bit board, dual duct air delivers a high-quality product and precision with functional prototypes.

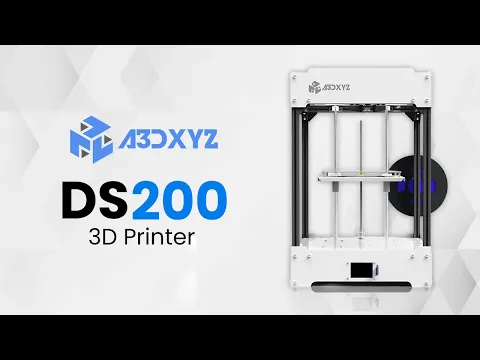

Teaser Video
Power Failure Resume
If suddenly goes power off, don’t worry a3dxyz ds200 provides power failure protection to resume where your print from last same point.
1 Year Warranty
A3DXYZ provides 3D printer with 1 year guaranteed warranty under purchase.
Lifetime Support
A3DXYZ provides lifetime support as personal technical support, QA, and many more supports.
Silent Printing
Less than 50dB silent noiseless.
Rigid Body
DS200 has a rigid sheet metal body which strengths, durable and beautiful design.
Bed Size
220mm x 220mm x 250mm
Slicer Profiles Ready
Engineered Ready Profile for your slicer as simply import and print it. We are available different types of slicers to support DS200 3D printer.
Power Failure Resume Feature
No need to worry about power failures anymore, it mechanized resumes the print if there’s a sudden power cut. You can resume from where you left point in order to reduce risk of filament wasting due to printing failure.
Colorful TFT 2.4inch Touchscreen Display
DS200 comes with multicolored 2.4 Inches wide touchscreen that offers efficient UI and is accessed by SD card for importing and printing the files.
Robust Body Design
Constructed with along Sheet metal, Aluminium profile, timing pulley, belt gives greatly structured printing stability, a robust design.
Hardware Features
Dual Cooling Duct
Having Dedicated parts cooling fans makes a difference feature of the great flow path and makes the printing more precise and quality.
32Bit STM32 Chip Board
A powerful Controller Board with 32-Bit silence motherboard cozy enviroment.
Application
Education
Students can learn 3D Printing and make their designs ownself innovations.
Architecture
Architecture can make scale model or such as process imaginations, prototyping etc.
Prototyping
Prototype can be created to visualize the shape, feel, fit and function model.
Automotive
Automotive can be use 3D Printer for low weight, production, complex design, as well as customization.
Medical Industry
Fоr ѕuреrіоr tооlіng, сuѕtоm fіxturеѕ аnd еnd-uѕе раrtѕ, 3D Printer are used.
Hobbiest
DS200 can be accurate and precise for hobbies/arts suitable
DS200 Printed Parts
Massive Print Volume
DS200
200
Length
200
Width
250
Height
20
Length
20
Width
25
Height
7.87
Length
7.87
Width
9.84
Height
Take a closer look
360Degree Rotate Visualize
Click and rotate left or right to experience rotate DS200 3D Printer.
Technical Specification
| Printer | |
|---|---|
| Technology | FDM |
| Build Volume | 215mm x 215mm x 250mm |
| Layer Height | 0.05mm, 0.1mm, 0.2mm, 0.3mm |
| Dimension Tolerance | 0.1mm ~ 0.4mm |
| Print Speed | 30mm/sec - 120mm/sec |
| Extruder temperature | 280°C (MAX) |
| Heating Bed temperature | 120°C (MAX) |
| Heated Build Platform | Yes (Aluminum Printbed) |
| Nozzle Size | 0.4mm - (E3D Standard) |
| Filament Diameter | 1.75mm |
| Material Type Competaible | PLA, PET-G, TPU, ABS, Composite |
| Warranty | 1 Years Guaranteed Warranty |
| Mechanical | |
|---|---|
| Body | Sturdy Powder Coating Sheet metal body |
| XY gantry | XY movement |
| Steppers Motor | 1.8 step angle with 1/16 micro stepping |
| X-Y Precision | 11 Microns(0.011mm) |
| Z Precision | 5 Micros(0.005mm) |
| Electrical | |
| Power Requirements | 230V, 50Hz, 240W |
| Connectivity | SD Card, USB A Type |
| Software | |
|---|---|
| Operating Systems | Windows 7/vista/8/10/11, MacOS |
| Slicer Software | Cura, PursaSlicer, Cura 15.11 (profile ready) |
| Supported File format | .STL, .gcode |
| Operating Control | Touch Screen Display |
| Packing | |
|---|---|
| Dimensions | 45cmx35cmx70cm |
| Weight | 22~24Kg (With Accessories Kits) |
| Printer | |
| Dimension | L-38cm x W-35cm x H-59cm |
| Weight | 18KG |
Content in Box
DS200 3D Printer
Allen Keys
Power Cable
Acupuncture Needle
SD Card Reader (not included SD Card)
